Our

Machines

Explore Our Machines

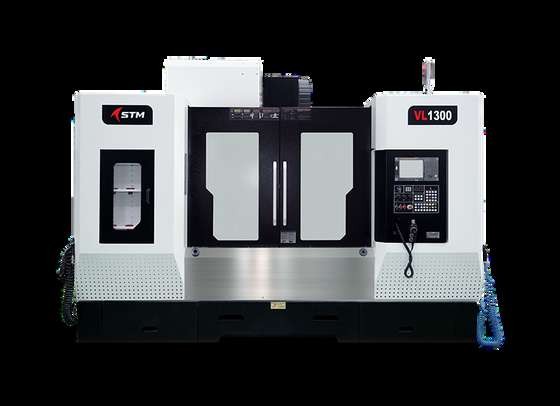

STM VL-1300 VMC

STM VL-1300 Vertical Machining Center(2)

  • Axis: 3-Axis Vertical Machining Center
  • Travel (X / Y / Z): 1300 / 700 / 700 mm
  • Ball Screws: C3 grade, 40 mm (X, Y, Z)
  • Spindle Nose to Table: 120 – 820 mm
  • Spindle Center to Column: 714 mm
  • Table Size: 1450 × 650 mm
  • T-Slots: 18 mm × 5 slots × 140 mm pitch
  • Max Table Load: 1500 kg
  • Spindle Taper / Speed: BBT40 / 10,000 RPM
  • Transmission: Belt type
  • Guideways: LM Roller guideways
  • Rapid Feed (X/Y/Z): 30 / 30 / 24 m/min
  • Cutting Feed: 1 – 10,000 mm/min
  • Position Accuracy: ±0.005 mm
  • Repeatability: ±0.003 mm
  • Accuracy Standard: VDI / DGQ 3441

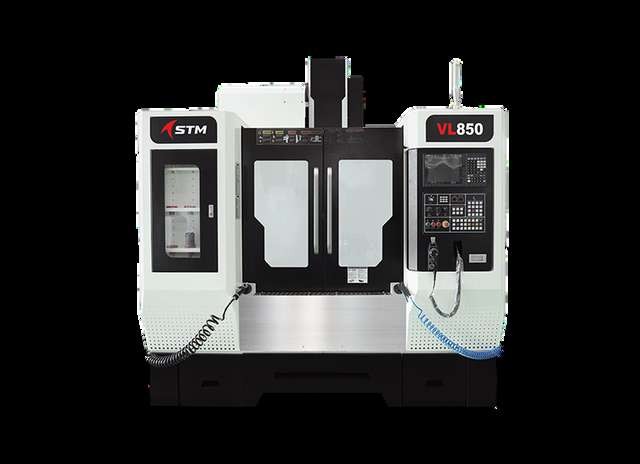

STM VL-850 VMC

STM VL-850 Vertical Machining Center(3)

  • Axis: 3-Axis Vertical Machining Center +Rotary 4 Axis Preparation
  • Travel (X / Y / Z): 850 / 510 / 510 mm
  • Ball Screws: C3 grade, 40 mm (X, Y, Z)
  • Spindle Nose to Table: 140 – 650 mm
  • Spindle Center to Column: 524 mm
  • Table Size: 1000 × 500 mm
  • T-Slots: 18 mm × 5 slots × 100 mm pitch
  • Max Table Load: 800 kg
  • Spindle Taper / Speed: BBT40 / 10,000 RPM
  • Transmission: Belt type
  • Guideways: LM Roller guideways
  • Rapid Feed (X/Y/Z): 36 / 36 / 36 m/min
  • Cutting Feed: 1 – 10,000 mm/min
  • Position Accuracy: ±0.005 mm
  • Repeatability: ±0.003 mm
  • Accuracy Standard: VDI / DGQ 3441

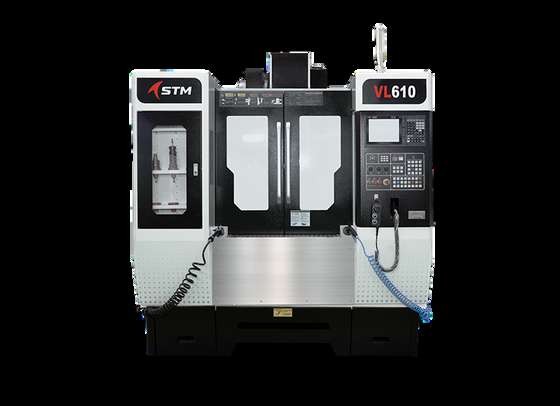

STM VL-610 VMC

STM VL-610 Vertical Machining Center(3)

  • Axis: 3-Axis Vertical Machining Center
  • Travel (X / Y / Z): 640 / 450 / 500 mm
  • Ball Screws: C3 grade, 32 mm (X, Y, Z)
  • Spindle Nose to Table: 100 – 600 mm
  • Spindle Center to Column: 524 mm
  • Table Size: 800 × 450 mm
  • T-Slots: 18 mm × 5 slots × 95 mm pitch
  • Max Table Load: 500 kg
  • Spindle Taper / Speed: BBT40 / 10,000 RPM
  • Transmission: Belt type
  • Guideways: LM Roller guideways
  • Rapid Feed (X/Y/Z): 36 / 36 / 36 m/min
  • Cutting Feed: 1 – 10,000 mm/min
  • Position Accuracy: ±0.005 mm
  • Repeatability: ±0.003 mm
  • Accuracy Standard: VDI / DGQ 3441

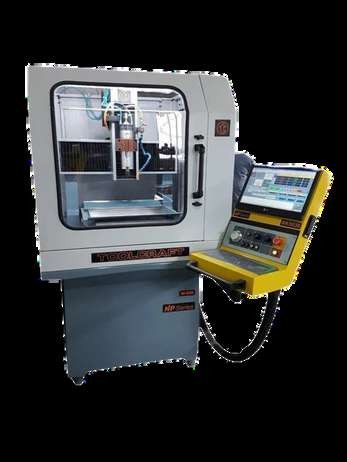

Toolcraft BR-5535 CNC

Toolcraft EX Series BR-5535

  • Axis: 3-Axis CNC precision milling & engraving machine
  • Control: OSAI open-architecture CNC controller
  • Accuracy: Up to 5 µm machining accuracy
  • Spindle Speed: High-speed spindle up to 30,000 RPM
  • Application: Precision machining and fine-detail engraving
  • Finish: Superior surface finish for intricate components
  • Industries: Aerospace, medical, automotive, and tooling
  • Typical Work: Electrodes, small moulds, dies, and engraving

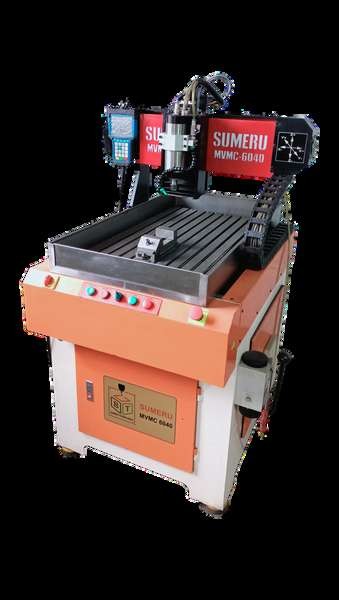

Sumeru MVMC-6040

Sumeru MVMC-6040

  • Axis: 3-Axis CNC engraving and cutting machine
  • Control: Mach-3 CNC control system
  • Table Size: 600 × 400 mm
  • Spindle Speed: High-speed spindle up to 20,000 RPM
  • Accuracy: Up to ±0.005 mm
  • Applications: Engraving, marking, and fine profile cutting
  • Materials: Plastics, acrylics, aluminum, and soft metals
  • Usage: Suitable for detailed and precision-oriented work

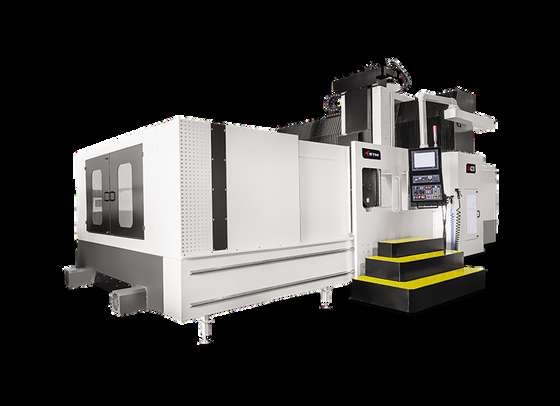

STM DL-2620 double column VMC

STM DL-2620 Double Column VMC

  • Travel (X / Y / Z): 2600 / 2000 / 900 mm
  • Table Load: Up to 1500 kg
  • Spindle: BBT40, 10,000 RPM
  • Position Accuracy: ±0.005 mm

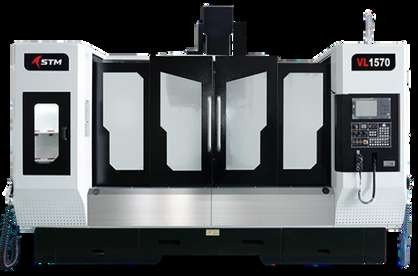

STM VD-1570 VMC

STM VD-1570 VMC

  • Travel (X / Y / Z): 1500 / 700 / 700 mm
  • Table Size: 1000 × 500 mm
  • Spindle: BBT40, 10,000 RPM
  • Guideways: LM roller guideways

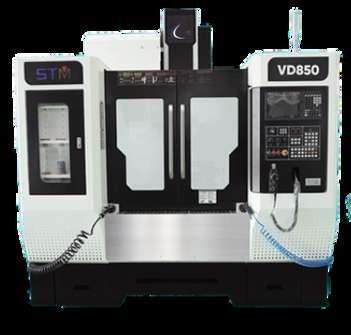

STM VD-850 VMC

STM VD-850 VMC(3)

  • Travel (X / Y / Z): 850 / 510 / 510 mm
  • Table Size: 1000 × 500 mm
  • Transmission: Direct drive
  • Repeatability: ±0.003 mm

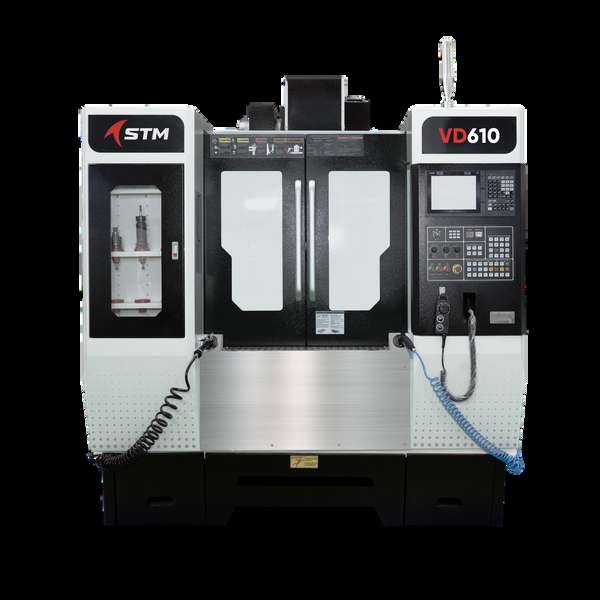

STM VD-610 VMC

STM VD-610 VMC(3)

  • Travel (X / Y / Z): 640 / 450 / 500 mm
  • Table Size: 800 × 450 mm
  • Transmission: Direct drive
  • Spindle: BBT40, 10,000 RPM
LMW S Turn 1 series turning machine

LMW S Turn 1 Series

  • Maximum Turning Diameter: 320 mm
  • Maximum Turning Length: 300 mm
  • Chuck Size: 8 inch (210 mm)
  • Maximum Spindle Speed: 4500 RPM

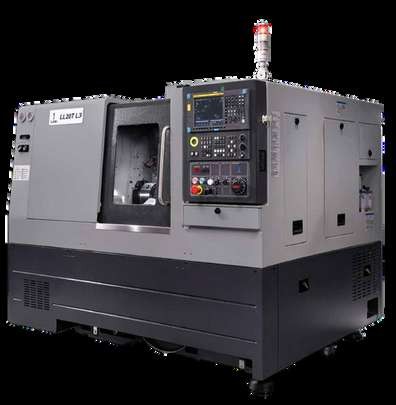

LMW LL20 L5 series turning machine

LMW LL20 L5 Series

  • Maximum Turning Diameter: 380 mm
  • Maximum Turning Length: 500 mm
  • Maximum Spindle Speed: 3500 RPM
  • Controller: Fanuc CNC

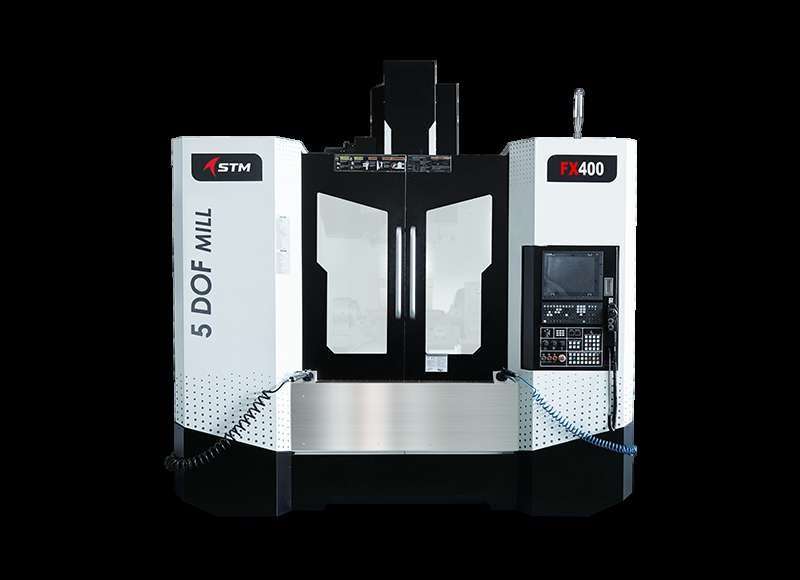

STM FX-400 five axis VMC

STM FX-400 5-Axis VMC

  • Working Envelope: 600 × 500 × 500 mm
  • Spindle: BBT40, up to 15,000 RPM
  • Tool Changer: 24-tool automatic changer
  • Repeatability: ±0.0035 mm

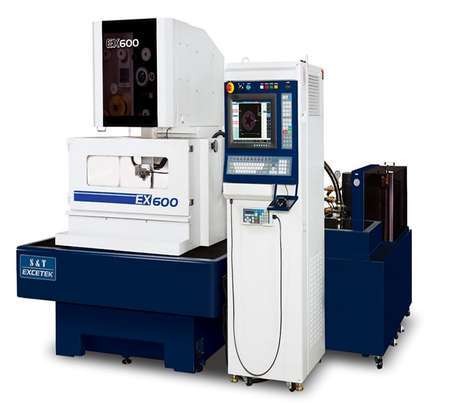

Excetek EX600 CNC wire cut EDM

Excetek EX600 CNC Wire Cut EDM

  • Travel (X / Y / Z): 600 / 400 / 300 mm
  • Work Table: 850 × 600 mm
  • Wire Diameter: 0.15 – 0.30 mm
  • Position Accuracy: ±0.005 mm

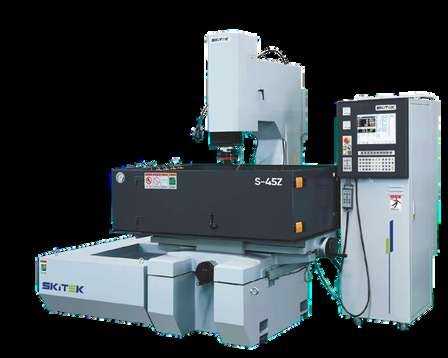

Skitek S-45Z die sinking EDM

Skitek S-45Z ZNC Die Sinking EDM

  • Travel (X / Y / Z): 450 / 350 / 200 mm
  • Work Table: 700 × 400 mm
  • Workpiece Weight: Up to 1000 kg
  • Servo System: AC servo-controlled Z-axis

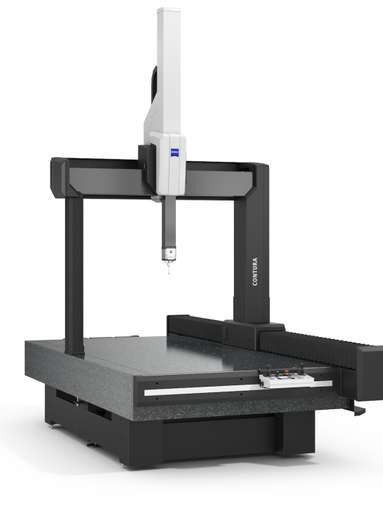

Zeiss Contura coordinate measuring machine

Zeiss Contura 9/18/6 CMM

  • Measuring Range: 900 / 1800 / 600 mm
  • Measuring Accuracy: 1.4 + L/350 µm
  • Structure: Granite table and bridge
  • Software: Zeiss Calypso

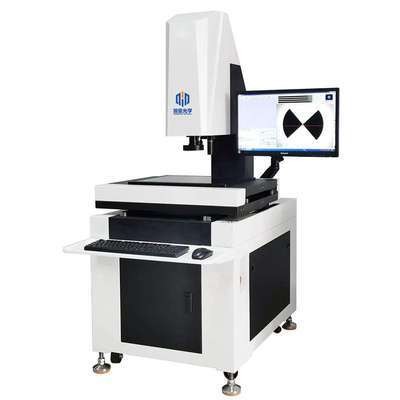

Omega Vision measuring machine

Omega Vision Measuring Machine

  • Type: Non-contact optical inspection system
  • Measuring Range: 500 × 400 mm
  • Optics: High-resolution CCD camera
  • Use: Dimensional inspection and quality control

Shaping Precision Through Expertise

At Chandhan Technology, we provide reliable milling, drilling, and component-manufacturing solutions built on accuracy, consistency, and strong engineering practices.

VMC Milling
Milling

High-Precision Milling Operations

Machining
Drilling

Accurate Drilling & Component Development

Assembly Solutions
ISO

ISO Certified company

Quality Assurance
Quality

Reliable Inspection & Quality Assurance

Manufacturing Innovation
Innovation

Advancing Modern Manufacturing Practices
