Explore Our Machines

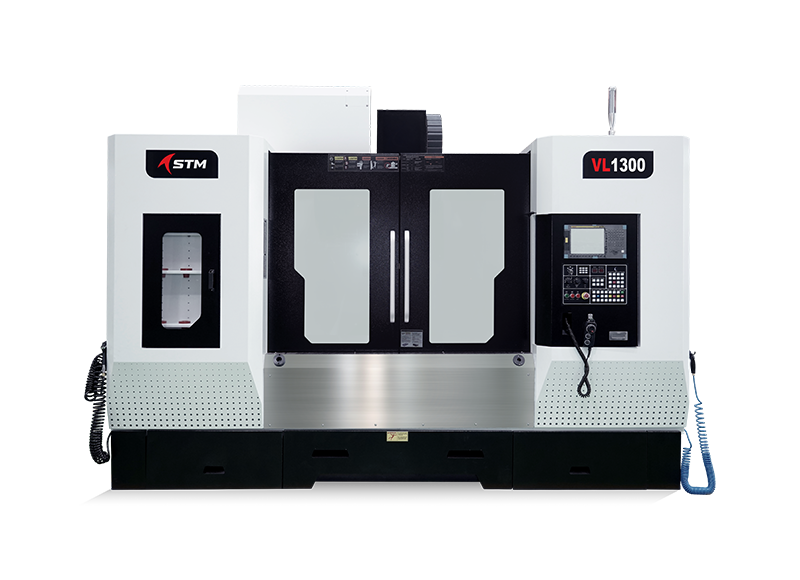

STM VL-1300 VMC

STM VL-1300 Vertical Machining Center

Axis: 3-Axis Vertical Machining Center
Travel (X / Y / Z): 1300 / 700 / 700 mm
Ball Screws: C3 grade, 40 mm (X, Y, Z)
Spindle Nose to Table: 120 – 820 mm
Spindle Center to Column: 714 mm
Table Size: 1450 × 650 mm
T-Slots: 18 mm × 5 slots × 140 mm pitch
Max Table Load: 1500 kg
Spindle Taper / Speed: BBT40 / 10,000 RPM
Transmission: Belt type
Guideways: LM Roller guideways
Rapid Feed (X/Y/Z): 30 / 30 / 24 m/min
Cutting Feed: 1 – 10,000 mm/min
Position Accuracy: ±0.005 mm
Repeatability: ±0.003 mm
Accuracy Standard: VDI / DGQ 3441

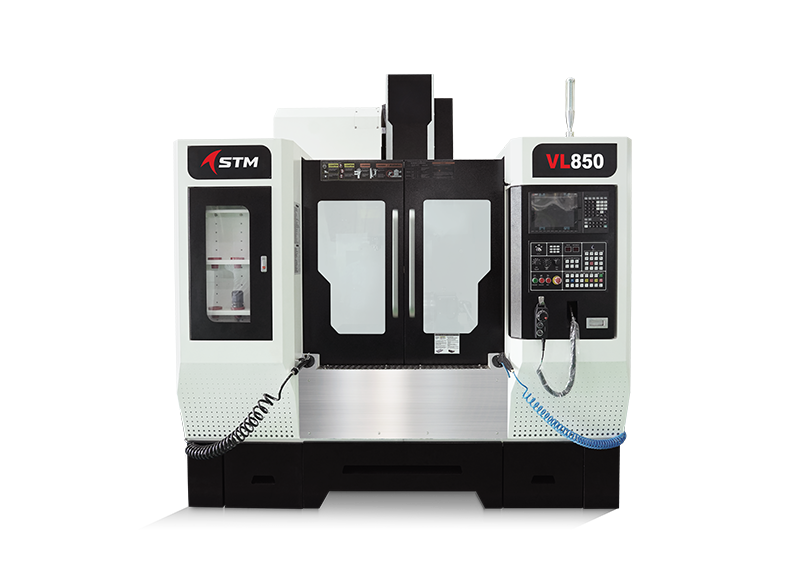

STM VL-850 VMC

STM VL-850 Vertical Machining Center

Axis: 3-Axis Vertical Machining Center +Rotary 4 Axis Preparation
Travel (X / Y / Z): 850 / 510 / 510 mm
Ball Screws: C3 grade, 40 mm (X, Y, Z)
Spindle Nose to Table: 140 – 650 mm
Spindle Center to Column: 524 mm
Table Size: 1000 × 500 mm
T-Slots: 18 mm × 5 slots × 100 mm pitch
Max Table Load: 800 kg
Spindle Taper / Speed: BBT40 / 10,000 RPM
Transmission: Belt type
Guideways: LM Roller guideways
Rapid Feed (X/Y/Z): 36 / 36 / 36 m/min
Cutting Feed: 1 – 10,000 mm/min
Position Accuracy: ±0.005 mm
Repeatability: ±0.003 mm
Accuracy Standard: VDI / DGQ 3441

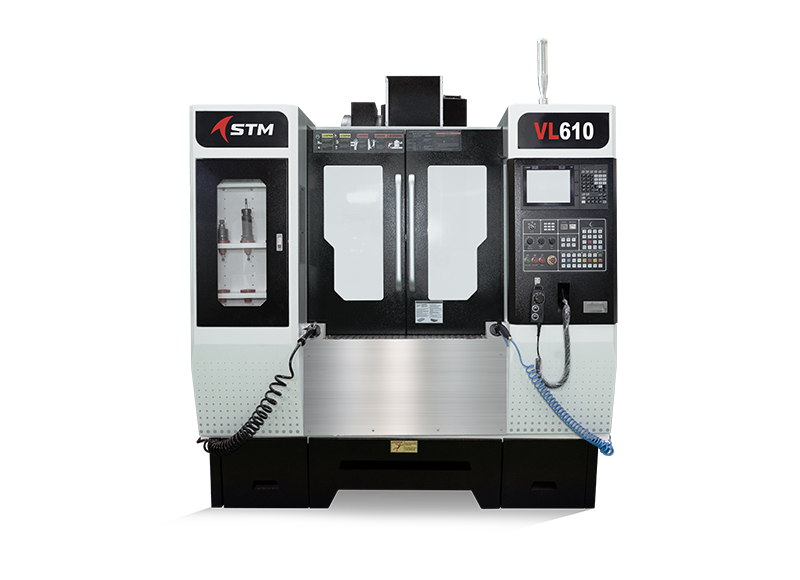

STM VL-610 VMC

STM VL-610 Vertical Machining Center

Axis: 3-Axis Vertical Machining Center
Travel (X / Y / Z): 640 / 450 / 500 mm
Ball Screws: C3 grade, 32 mm (X, Y, Z)
Spindle Nose to Table: 100 – 600 mm
Spindle Center to Column: 524 mm
Table Size: 800 × 450 mm
T-Slots: 18 mm × 5 slots × 95 mm pitch
Max Table Load: 500 kg
Spindle Taper / Speed: BBT40 / 10,000 RPM
Transmission: Belt type
Guideways: LM Roller guideways
Rapid Feed (X/Y/Z): 36 / 36 / 36 m/min
Cutting Feed: 1 – 10,000 mm/min
Position Accuracy: ±0.005 mm
Repeatability: ±0.003 mm
Accuracy Standard: VDI / DGQ 3441

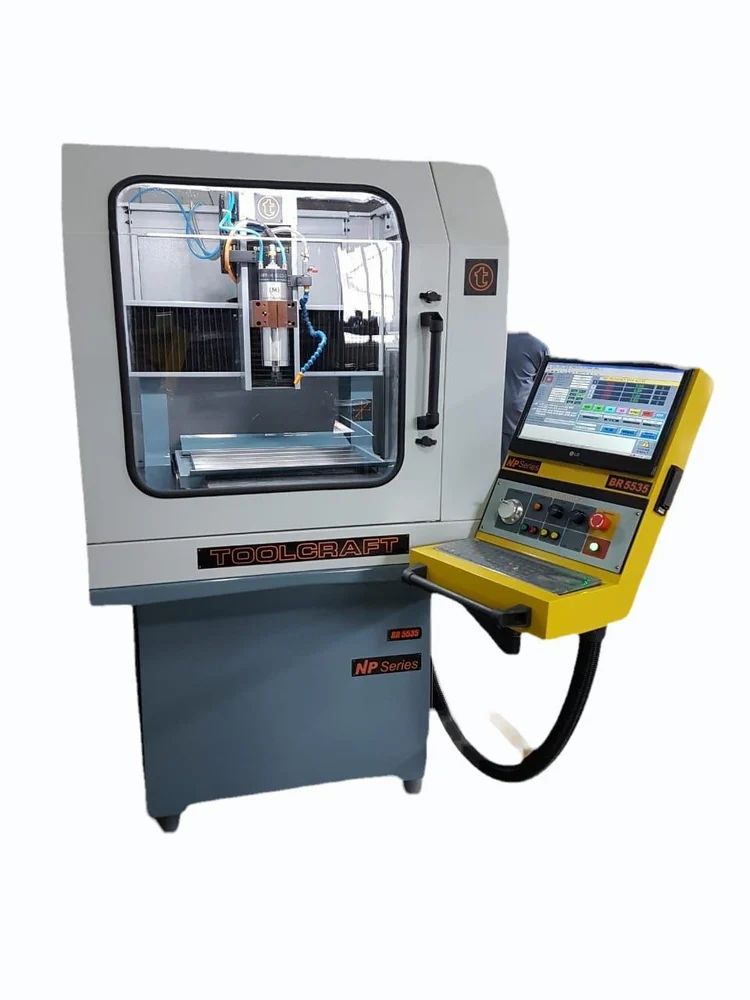

Toolcraft BR-5535 CNC

Toolcraft EX Series BR-5535

Axis: 3-Axis CNC precision milling & engraving machine
Control: OSAI open-architecture CNC controller
Accuracy: Up to 5 µm machining accuracy
Spindle Speed: High-speed spindle up to 30,000 RPM
Application: Precision machining and fine-detail engraving
Finish: Superior surface finish for intricate components
Industries: Aerospace, medical, automotive, and tooling
Typical Work: Electrodes, small moulds, dies, and engraving

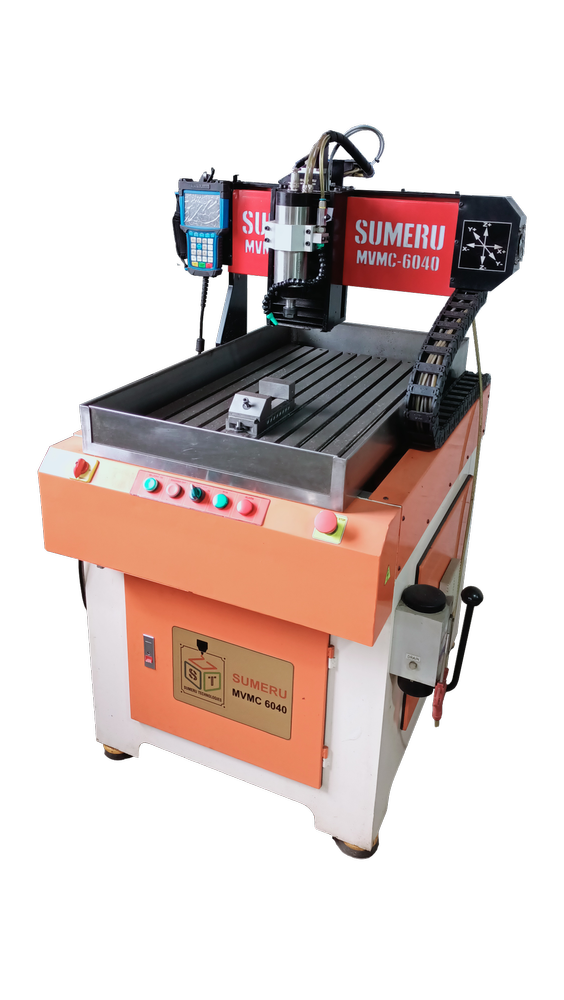

Sumeru MVMC-6040

Sumeru MVMC-6040

Axis: 3-Axis CNC engraving and cutting machine
Control: Mach-3 CNC control system
Table Size: 600 × 400 mm
Spindle Speed: High-speed spindle up to 20,000 RPM
Accuracy: Up to ±0.005 mm
Applications: Engraving, marking, and fine profile cutting
Materials: Plastics, acrylics, aluminum, and soft metals
Usage: Suitable for detailed and precision-oriented work

Shaping Precision Through Expertise

At Chandhan Technology, we provide reliable milling, drilling, and component-manufacturing solutions built on accuracy, consistency, and strong engineering practices.

Milling

High-Precision Milling Operations

Drilling

Accurate Drilling & Component Development

Assembly Solutions

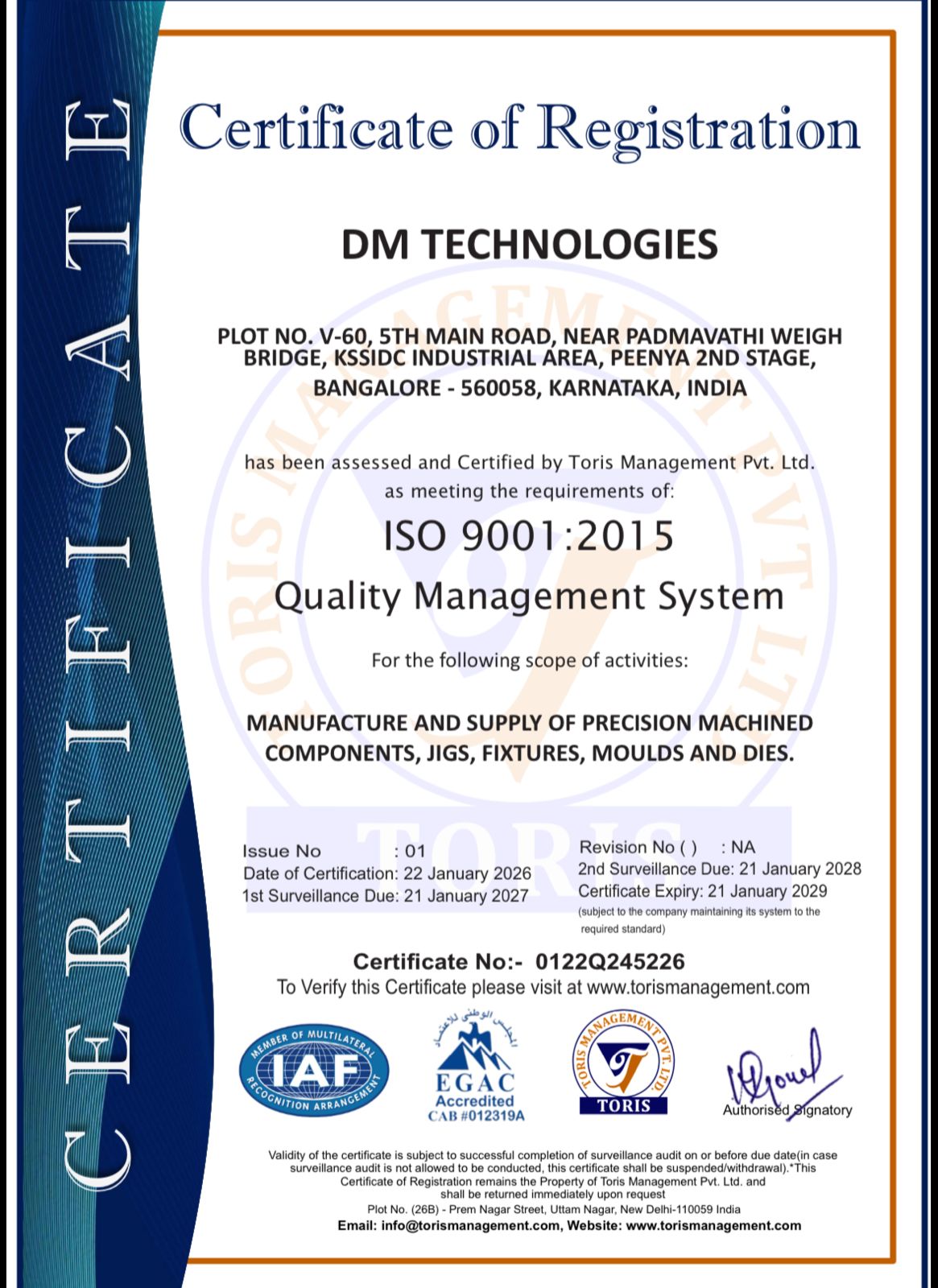

ISO
